Wasm Implementation Notes

Supported Instructions

The SOAR supports the Wasm specification 1.0 with the following additionnal instructions and limitations.

Additionnal Instructions

New Sign-extending

  • i32.extend8_s: extend a signed 8-bit integer to a 32-bit integer

  • i32.extend16_s: extend a signed 16-bit integer to a 32-bit integer

  • i64.extend8_s: extend a signed 8-bit integer to a 64-bit integer

  • i64.extend16_s: extend a signed 16-bit integer to a 64-bit integer

  • i64.extend32_s: extend a signed 32-bit integer to a 64-bit integer

Bulk Memory

  • memory.init: copy a region from a data segment

  • memory.copy: copy from one region of linear memory to another

  • memory.fill: fill a region of linear memory with a given byte value

  • data.drop: discard the data in an data segment

Atomic Memory Accesses Load/Store

  • i32.atomic.load8_u: atomically load 1 byte and zero-extend i8 to i32

  • i32.atomic.load16_u: atomically load 2 bytes and zero-extend i16 to i32

  • i32.atomic.load: atomically load 4 bytes as i32

  • i64.atomic.load8_u: atomically load 1 byte and zero-extend i8 to i64

  • i64.atomic.load16_u: atomically load 2 bytes and zero-extend i16 to i64

  • i64.atomic.load32_u: atomically load 4 bytes and zero-extend i32 to i64

  • i64.atomic.load: atomically load 8 bytes as i64

  • i32.atomic.store8: wrap i32 to i8 and atomically store 1 byte

  • i32.atomic.store16: wrap i32 to i16 and atomically store 2 bytes

  • i32.atomic.store: (no conversion) atomically store 4 bytes

  • i64.atomic.store8: wrap i64 to i8 and atomically store 1 byte

  • i64.atomic.store16: wrap i64 to i16 and atomically store 2 bytes

  • i64.atomic.store32: wrap i64 to i32 and atomically store 4 bytes

  • i64.atomic.store: (no conversion) atomically store 8 bytes

Atomic Memory Accesses Read-Modify-Write

  • i32.atomic.rmw8.add_u: Performs an atomic addition of an i32 value to an 8-bit unsigned integer in memory and returns the original value zero-extended to i32.

  • i32.atomic.rmw16.add_u: Performs an atomic addition of an i32 value to a 16-bit unsigned integer and returns the original value zero-extended to i32.

  • i32.atomic.rmw.add: Performs an atomic addition of two i32 values and returns the original 32-bit value.

  • i64.atomic.rmw8.add_u: Performs an atomic addition of an i64 value to an 8-bit unsigned integer and returns the original value zero-extended to i64.

  • i64.atomic.rmw16.add_u: Performs an atomic addition of an i64 value to a 16-bit unsigned integer and returns the original value zero-extended to i64.

  • i64.atomic.rmw32.add_u: Performs an atomic addition of an i64 value to a 32-bit unsigned integer and returns the original value zero-extended to i64.

  • i64.atomic.rmw.add: Performs an atomic addition of two i64 values and returns the original 64-bit value.

  • i32.atomic.rmw8.sub_u: Performs an atomic subtraction of an i32 value from an 8-bit unsigned integer and returns the original value zero-extended to i32.

  • i32.atomic.rmw16.sub_u: Performs an atomic subtraction of an i32 value from a 16-bit unsigned integer and returns the original value zero-extended to i32.

  • i32.atomic.rmw.sub: Performs an atomic subtraction of two i32 values and returns the original 32-bit value.

  • i64.atomic.rmw8.sub_u: Performs an atomic subtraction of an i64 value from an 8-bit unsigned integer and returns the original value zero-extended to i64.

  • i64.atomic.rmw16.sub_u: Performs an atomic subtraction of an i64 value from a 16-bit unsigned integer and returns the original value zero-extended to i64.

  • i64.atomic.rmw32.sub_u: Performs an atomic subtraction of an i64 value from a 32-bit unsigned integer and returns the original value zero-extended to i64.

  • i64.atomic.rmw.sub: Performs an atomic subtraction of two i64 values and returns the original 64-bit value.

  • i32.atomic.rmw8.and_u: Performs an atomic bitwise AND on an 8-bit unsigned integer and an i32 value; returns the original value zero-extended to i32.

  • i32.atomic.rmw16.and_u: Performs an atomic bitwise AND on a 16-bit unsigned integer and an i32 value; returns the original value zero-extended to i32.

  • i32.atomic.rmw.and: Performs an atomic bitwise AND on two i32 values and returns the original 32-bit value.

  • i64.atomic.rmw8.and_u: Performs an atomic bitwise AND on an 8-bit unsigned integer and an i64 value; returns the original value zero-extended to i64.

  • i64.atomic.rmw16.and_u: Performs an atomic bitwise AND on a 16-bit unsigned integer and an i64 value; returns the original value zero-extended to i64.

  • i64.atomic.rmw32.and_u: Performs an atomic bitwise AND on a 32-bit unsigned integer and an i64 value; returns the original value zero-extended to i64.

  • i64.atomic.rmw.and: Performs an atomic bitwise AND on two i64 values and returns the original 64-bit value.

  • i32.atomic.rmw8.or_u: Performs an atomic bitwise OR on an 8-bit unsigned integer and an i32 value; returns the original value zero-extended to i32.

  • i32.atomic.rmw16.or_u: Performs an atomic bitwise OR on a 16-bit unsigned integer and an i32 value; returns the original value zero-extended to i32.

  • i32.atomic.rmw.or: Performs an atomic bitwise OR on two i32 values and returns the original 32-bit value.

  • i64.atomic.rmw8.or_u: Performs an atomic bitwise OR on an 8-bit unsigned integer and an i64 value; returns the original value zero-extended to i64.

  • i64.atomic.rmw16.or_u: Performs an atomic bitwise OR on a 16-bit unsigned integer and an i64 value; returns the original value zero-extended to i64.

  • i64.atomic.rmw32.or_u: Performs an atomic bitwise OR on a 32-bit unsigned integer and an i64 value; returns the original value zero-extended to i64.

  • i64.atomic.rmw.or: Performs an atomic bitwise OR on two i64 values and returns the original 64-bit value.

  • i32.atomic.rmw8.xor_u: Performs an atomic bitwise XOR on an 8-bit unsigned integer and an i32 value; returns the original value zero-extended to i32.

  • i32.atomic.rmw16.xor_u: Performs an atomic bitwise XOR on a 16-bit unsigned integer and an i32 value; returns the original value zero-extended to i32.

  • i32.atomic.rmw.xor: Performs an atomic bitwise XOR on two i32 values and returns the original 32-bit value.

  • i64.atomic.rmw8.xor_u: Performs an atomic bitwise XOR on an 8-bit unsigned integer and an i64 value; returns the original value zero-extended to i64.

  • i64.atomic.rmw16.xor_u: Performs an atomic bitwise XOR on a 16-bit unsigned integer and an i64 value; returns the original value zero-extended to i64.

  • i64.atomic.rmw32.xor_u: Performs an atomic bitwise XOR on a 32-bit unsigned integer and an i64 value; returns the original value zero-extended to i64.

  • i64.atomic.rmw.xor: Performs an atomic bitwise XOR on two i64 values and returns the original 64-bit value.

  • i32.atomic.rmw8.xchg_u: Performs an atomic exchange between an 8-bit unsigned memory value and an i32 operand; returns the original value zero-extended to i32.

  • i32.atomic.rmw8.xchg_u: Performs an atomic exchange: stores the low 8 bits of an i32 value into memory, and returns the previous 8-bit value zero-extended to i32.

  • i32.atomic.rmw16.xchg_u: Performs an atomic exchange: stores the low 16 bits of an i32 value into memory, and returns the previous 16-bit value zero-extended to i32.

  • i32.atomic.rmw.xchg: Performs an atomic exchange of a 32-bit i32 value in memory and returns the original value.

  • i64.atomic.rmw8.xchg_u: Performs an atomic exchange: stores the low 8 bits of an i64 value into memory , and returns the previous 8-bit value zero-extended to i64.

  • i64.atomic.rmw16.xchg_u: Performs an atomic exchange: stores the low 16 bits of an i64 value into memory, and returns the previous 16-bit value zero-extended to i64.

  • i64.atomic.rmw32.xchg_u: Performs an atomic exchange: stores the low 32 bits of an i64 value into memory, and returns the previous 32-bit value zero-extended to i64.

  • i64.atomic.rmw.xchg: Performs an atomic exchange of a 64-bit i64 value in memory and returns the original value.

Atomic Memory Accesses Compare Exchange

  • i32.atomic.rmw8.cmpxchg_u: Compares the low 8 bits of the i32 expected value to the 8-bit memory value; if equal, stores the low 8 bits of the replacement value. Returns the original 8-bit memory value zero-extended to i32.

  • i32.atomic.rmw16.cmpxchg_u: Compares the low 16 bits of the i32 expected value to the 16-bit memory value; if equal, stores the low 16 bits of the replacement value. Returns the original 16-bit value zero-extended to i32.

  • i32.atomic.rmw.cmpxchg: Compares the full 32-bit i32 expected value to the 32-bit memory value; if equal, stores the 32-bit replacement. Returns the original 32-bit value.

  • i64.atomic.rmw8.cmpxchg_u: Compares the low 8 bits of the i64 expected value to the 8-bit memory value; if equal, stores the low 8 bits of the replacement value. Returns the original 8-bit value zero-extended to i64.

  • i64.atomic.rmw16.cmpxchg_u: Compares the low 16 bits of the i64 expected value to the 16-bit memory value; if equal, stores the low 16 bits of the replacement value. Returns the original 16-bit value zero-extended to i64.

  • i64.atomic.rmw32.cmpxchg_u: Compares the low 32 bits of the i64 expected value to the 32-bit memory value; if equal, stores the low 32 bits of the replacement value. Returns the original 32-bit value zero-extended to i64.

  • i64.atomic.rmw.cmpxchg: Compares the full 64-bit i64 expected value to the memory value; if equal, stores the full 64-bit replacement. Returns the original 64-bit value.

Atomic Memory Accesses Wait and Notify operators

  • memory.atomic.wait32: load i32 value, compare to expected (as i32), and wait for notify at same address

  • memory.atomic.wait64: load i64 value, compare to expected (as i64), and wait for notify at same address

  • memory.atomic.notify: notify count threads waiting on the given address via memory.atomic.wait32 or memory.atomic.wait64

Partially Supported Instructions

  • memory.grow: instruction always fails and returns -1. It does not expand the linear memory.

  • i32.atomic.load*, i32.atomic.store*, i64.atomic.load* and i64.atomic.store*: instructions do not check for unaligned memory access.

Trap Conditions

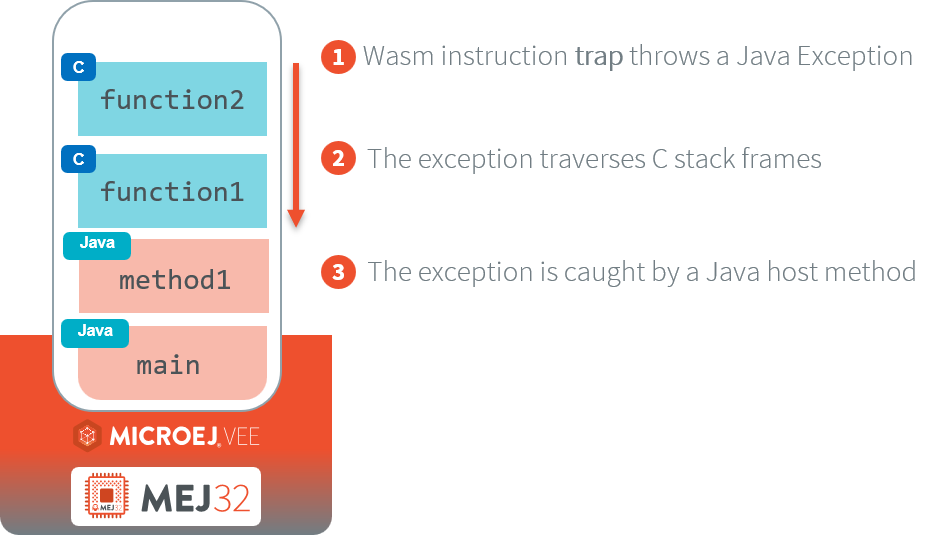

When an instruction triggers a trap, the Core Engine throws a Java exception. This has for effect to abort the execution of the current Wasm module, by dropping all the C stack frames, until the Java exception is caught by a host Java method.

../../_images/managedc-communication-trap.png

Wasm Instruction Trap Behaviour

The following table lists all instructions that can trigger a trap, the conditions under which the trap may occur and the Java exception class that is thrown.

Instruction

Trap Condition

Java Exception

unreachable

Always traps

java.lang.AssertionError

memory.copy

Out-of-bounds access

java.lang.IndexOutOfBoundsException

memory.fill

Out-of-bounds access

java.lang.ArrayIndexOutOfBoundsException

memory.init

Out-of-bounds access

java.io.IOException or java.lang.IndexOutOfBoundsException

Invalid data segment index

java.io.IOException

call_indirect

Undefined table element

java.lang.IllegalArgumentException or java.lang.NullPointerException

Function signature mismatch

java.lang.IllegalArgumentException

i32.div_s, i32.div_u, i64.div_s, i64.div_u, i32.rem_s, i32.rem_u, i64.rem_s, i64.rem_u

Division by zero

java.lang.ArithmeticException

i32.load, i32.load8_s, i32.load8_u, i32.load16_s, i32.load16_u, i64.load, i64.load8_s, i64.load8_u, i64.load16_s, i64.load16_u, i64.load32_s, i64.load32_u, i32.store, i32.store8, i32.store16, i64.store, i64.store8, i64.store16, i64.store32, f32.load, f64.load, f32.store, f64.store

Out-of-bounds access

java.lang.ArrayIndexOutOfBoundsException

i32.atomic.rmw.add, i32.atomic.rmw8.add_u, i32.atomic.rmw16.add_u, i64.atomic.rmw.add, i64.atomic.rmw8.add_u,

i64.atomic.rmw16.add_u, i64.atomic.rmw32.add_u, i32.atomic.rmw8.sub_u, i32.atomic.rmw16.sub_u, i32.atomic.rmw.sub, i64.atomic.rmw8.sub_u, i64.atomic.rmw16.sub_u, i64.atomic.rmw32.sub_u, i64.atomic.rmw.sub, i32.atomic.rmw8.and_u, i32.atomic.rmw16.and_u, i32.atomic.rmw.and, i64.atomic.rmw8.and_u, i64.atomic.rmw16.and_u, i64.atomic.rmw32.and_u, i64.atomic.rmw.and, i32.atomic.rmw8.or_u, i32.atomic.rmw16.or_u, i32.atomic.rmw.or, i64.atomic.rmw8.or_u, i64.atomic.rmw16.or_u, i64.atomic.rmw32.or_u, i64.atomic.rmw.or, i32.atomic.rmw8.xor_u, i32.atomic.rmw16.xor_u, i32.atomic.rmw.xor, i64.atomic.rmw8.xor_u, i64.atomic.rmw16.xor_u, i64.atomic.rmw32.xor_u, i64.atomic.rmw.xor, i32.atomic.rmw8.xchg_u, i32.atomic.rmw8.xchg_u, i32.atomic.rmw16.xchg_u, i32.atomic.rmw.xchg, i64.atomic.rmw8.xchg_u, i64.atomic.rmw16.xchg_u, i64.atomic.rmw32.xchg_u, i64.atomic.rmw.xchg, i32.atomic.rmw.cmpxchg, i32.atomic.rmw8.cmpxchg_u, i32.atomic.rmw16.cmpxchg_u, i64.atomic.rmw.cmpxchg, i64.atomic.rmw8.cmpxchg_u, i64.atomic.rmw16.cmpxchg_u, i64.atomic.rmw32.cmpxchg_u, memory.atomic.wait32, memory.atomic.wait64, memory.atomic.notify

Out-of-bounds access

java.lang.ArrayIndexOutOfBoundsException

Misaligned address

java.lang.IllegalArgumentException
