GNSS

Principle

The GNSS Foundation Library.

Functional Description

Interactions with the GNSS API goes through a GNSS manager. This manager works around a state machine. To perform read operations to retrieve GNSS data, the machine must be in a STARTED state. Transitions between the states are controlled by the user. The following graph: details the different states, their function and transitions.

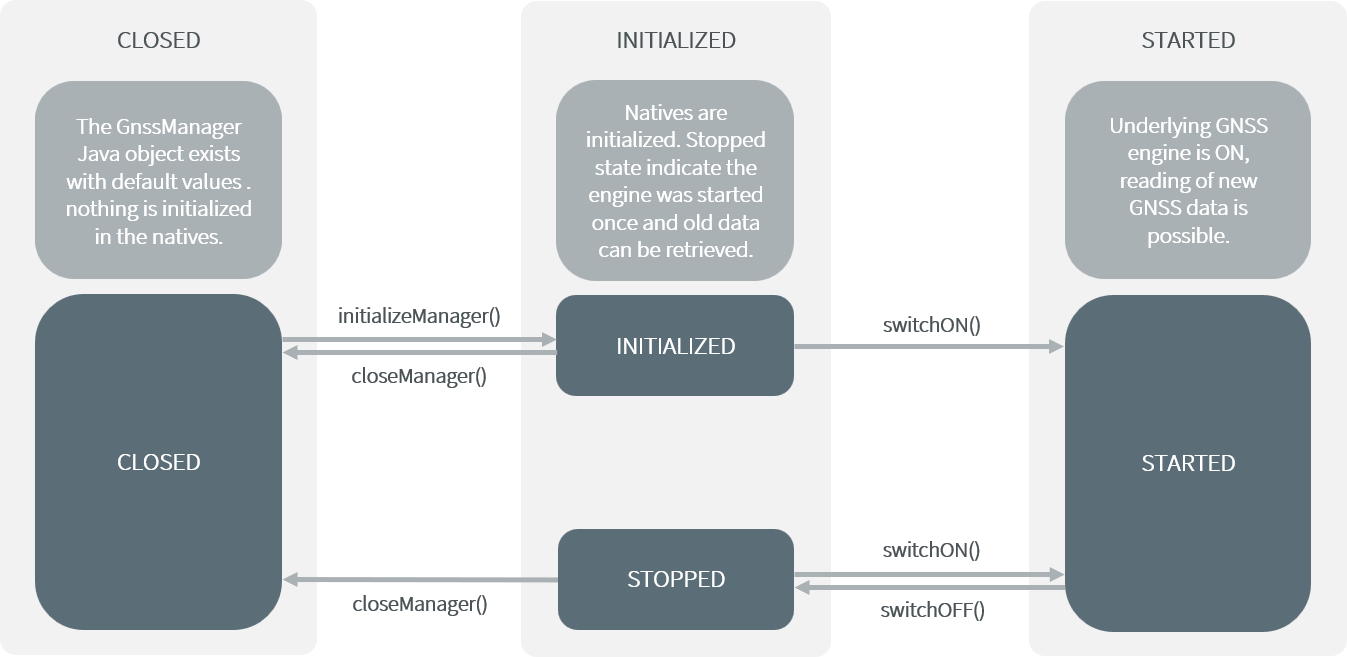

GNSS state machine. — GNSS State Machine.

After each operations, the method getState() can be called on the GNSS manager instance to check weither or not the state has been successfully changed.

Turning the GNSS Engine ON

// Retrieve the GNSS instance
GnssManager gnssManager = GnssManager.getInstance();

// Initialize the manager and native components
gnssManager.initializeManager();

// Switch the GNSS Engine ON
gnssManager.switchOn();

Retrieving GNSS data

// Read data
gnssManager.readPosition();

// Check timestamp of latest data read to confirm a fix was found.
long timestamp = gnssManager.getTime();

// Retrieve alitude data from engine
gnssManager.getAltitude()

Turning the GNSS Engine OFF

// Retrieve the GNSS instance
GnssManager gnssManager = GnssManager.getInstance();

// Switch the GNSS Engine OFF
gnssManager.switchOff();

// Close every native components and the manager.
gnssManager.closeManager();

Note

readPosition() call will throw an IOException if an error occured during data reading, however, timestamp will still be updated.

Use

The GNSS Library is provided as a Foundation Library.

To use the GNSS API Module, add the following line to the project build file:

implementation("ej.api:gnss:2.0.0")

Building or running an Application which uses the GNSS Library requires a SDK6 VEE Port that provides the GNSS Pack.
