Dependencies Configurations

This chapter describes all the dependency configurations added to your project by the MicroEJ Gradle plugins.

Note

The MicroEJ Gradle plugins extend the Gradle Java and Java Library plugins. For more information about the configurations inherited from those plugins, refer to the official documentation :

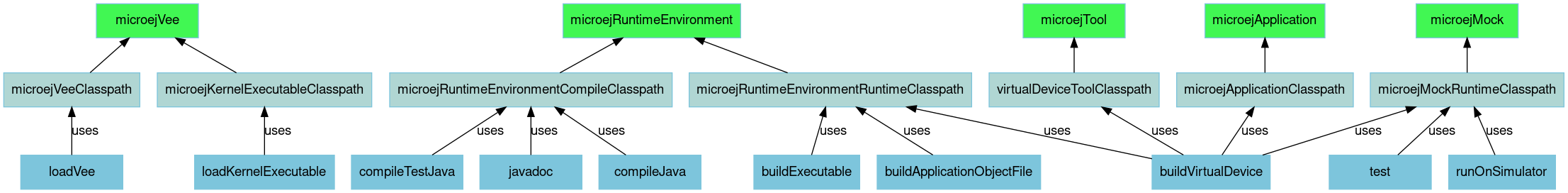

The following graph describes the dependency configurations. Use this legend to interpret the colors:

  • Green background : Dependencies can be declared against this configuration

  • Gray background : This configuration is for consumption by tasks only

  • Blue background : A task

digraph mygraph {
    rankdir="BT";
    bgcolor="transparent"
    fontname="Helvetica,Arial,sans-serif"
    node [
        shape = box
        width = 1.5
        color = "#7dc5dc"
        style = filled
        fontname="Helvetica,Arial,sans-serif"
    ]
    edge [fontname="Helvetica,Arial,sans-serif"]
    "microejVee" [fillcolor = "#41f753"]
    "microejApplication" [fillcolor = "#41f753"]
    "microejTool" [fillcolor = "#41f753"]
    "microejRuntimeEnvironment" [fillcolor = "#41f753"]
    "microejApplicationClasspath" [fillcolor = "#b0d6d3"]
    "microejVeeClasspath" [fillcolor = "#b0d6d3"]
    "microejKernelExecutableClasspath" [fillcolor = "#b0d6d3"]
    "virtualDeviceToolClasspath" [fillcolor = "#b0d6d3"]
    "microejRuntimeEnvironmentCompileClasspath" [fillcolor = "#b0d6d3"]
    "microejRuntimeEnvironmentRuntimeClasspath" [fillcolor = "#b0d6d3"]

    "loadVee" -> "microejVeeClasspath" [ label="uses" ]
    "microejVeeClasspath" -> "microejVee"
    "loadKernelExecutable" -> "microejKernelExecutableClasspath" [ label="uses" ]
    "microejKernelExecutableClasspath" -> "microejVee"
    "buildVirtualDevice" -> "microejApplicationClasspath" [ label="uses" ]
    "buildVirtualDevice" -> "virtualDeviceToolClasspath" [ label="uses" ]
    "microejApplicationClasspath" -> "microejApplication"
    "virtualDeviceToolClasspath" -> "microejTool"
    "microejRuntimeEnvironmentCompileClasspath" -> "microejRuntimeEnvironment"
    "microejRuntimeEnvironmentRuntimeClasspath" -> "microejRuntimeEnvironment"
    "compileJava" -> "microejRuntimeEnvironmentCompileClasspath" [ label="uses" ]
    "compileTestJava" -> "microejRuntimeEnvironmentCompileClasspath" [ label="uses" ]
    "javadoc" -> "microejRuntimeEnvironmentCompileClasspath" [ label="uses" ]
    "buildVirtualDevice" -> "microejRuntimeEnvironmentRuntimeClasspath" [ label="uses" ]
    "buildApplicationObjectFile" -> "microejRuntimeEnvironmentRuntimeClasspath" [ label="uses" ]
    "buildExecutable" -> "microejRuntimeEnvironmentRuntimeClasspath" [ label="uses" ]
}

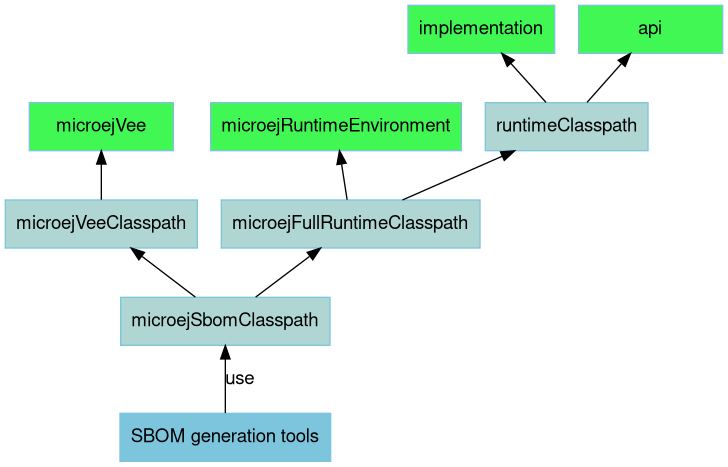

The MicroEJ Gradle plugins also define dependency configurations for internal use:

Dependencies Configurations in a VEE Port Project

This section describes all the dependency configurations added to your VEE Port project by the MicroEJ Gradle plugins.

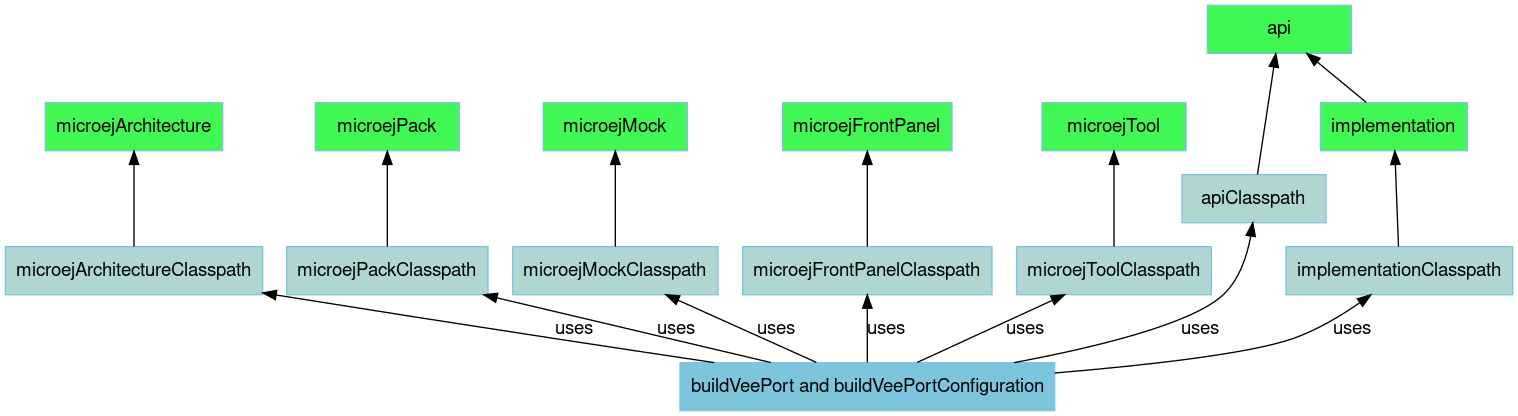

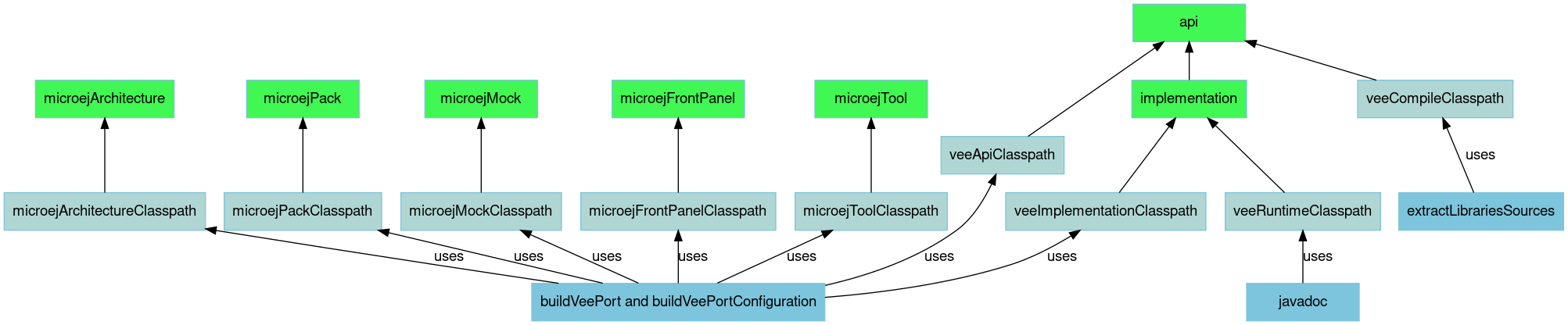

The following graph describes the dependency configurations. Use this legend to interpret the colors:

  • Green background: Dependencies can be declared against this configuration

  • Gray background: This configuration is for consumption by tasks only

  • Blue background: The tasks

digraph mygraph {
    rankdir="BT";
    bgcolor="transparent"
    fontname="Helvetica,Arial,sans-serif"
    node [
        shape = box
        width = 1.5
        color = "#7dc5dc"
        style = filled
        fontname="Helvetica,Arial,sans-serif"
    ]
    edge [fontname="Helvetica,Arial,sans-serif"]
    "microejArchitecture" [fillcolor = "#41f753"]
    "microejPack" [fillcolor = "#41f753"]
    "microejMock" [fillcolor = "#41f753"]
    "microejFrontPanel" [fillcolor = "#41f753"]
    "microejTool" [fillcolor = "#41f753"]
    "api" [fillcolor = "#41f753"]
    "implementation" [fillcolor = "#41f753"]

    "microejArchitectureClasspath" [fillcolor = "#b0d6d3"]
    "microejPackClasspath" [fillcolor = "#b0d6d3"]
    "microejMockClasspath" [fillcolor = "#b0d6d3"]
    "microejFrontPanelClasspath" [fillcolor = "#b0d6d3"]
    "microejToolClasspath" [fillcolor = "#b0d6d3"]
    "apiClasspath" [fillcolor = "#b0d6d3"]
    "implementationClasspath" [fillcolor = "#b0d6d3"]

    "microejArchitectureClasspath" -> "microejArchitecture"
    "microejPackClasspath" -> "microejPack"
    "microejMockClasspath" -> "microejMock"
    "microejFrontPanelClasspath" -> "microejFrontPanel"
    "microejToolClasspath" -> "microejTool"
    "implementation" -> "api"
    "apiClasspath" -> "api"
    "implementationClasspath" -> "implementation"
    "buildVeePort and buildVeePortConfiguration" -> "microejArchitectureClasspath" [ label="uses" ]
    "buildVeePort and buildVeePortConfiguration" -> "microejPackClasspath" [ label="uses" ]
    "buildVeePort and buildVeePortConfiguration" -> "microejMockClasspath" [ label="uses" ]
    "buildVeePort and buildVeePortConfiguration" -> "microejFrontPanelClasspath" [ label="uses" ]
    "buildVeePort and buildVeePortConfiguration" -> "microejToolClasspath" [ label="uses" ]
    "buildVeePort and buildVeePortConfiguration" -> "apiClasspath" [ label="uses" ]
    "buildVeePort and buildVeePortConfiguration" -> "implementationClasspath" [ label="uses" ]
}

Variants

The MicroEJ Gradle plugins define a list of variants allowing to fetch the right component of a dependency based on the consumer’s requirements. Each variant is configured with its own attributes. Refer to Attributes of a Variant for more information about attributes.

Add-On Library

The Add-On Library plugin defines the following variants:

runtimeAndMockElements

This variant is used to fetch a Library and its dependencies when it is declared with the implementation or api configuration in your VEE Port project. It is configured with the following attribute:

  • the custom com.microej.veeport.artifact.usage attribute, set to default

Application

The Application plugin defines the following variants:

microejWPK

This variant is used to fetch the WPK of an Application when a dependency is declared with the microejApplication configuration in your project. It is configured with the following attributes:

  • the custom com.microej.artifact.element attribute, set to application-wpk

  • the standard LibraryElement attribute, set to microej-wpk

microejExecutable

This variant is used to fetch the Executable of an Application when a dependency is declared with the microejVee configuration in your project. It is configured with the following attributes:

  • the custom com.microej.artifact.element attribute, set to executable

  • the standard LibraryElement attribute, set to microej-executable

microejExecutableBuildFiles

This variant is used to publish the files generated when building the Executable of an Application. It is configured with the following attribute:

  • the custom com.microej.artifact.element attribute, set to executable-build-files

microejVirtualDevice

This variant is used to fetch the Virtual Device of an Application when a dependency is declared with the microejVee configuration in your project. It is configured with the following attributes:

  • the custom com.microej.artifact.element attribute, set to virtual-device

  • the standard LibraryElement attribute, set to microej-vee-port

microejFeatureBuildFiles

This variant is used to publish the files generated when building the Feature of an Application. It is configured with the following attribute:

  • the custom com.microej.artifact.element attribute, set to feature-build-files

Mock

The Mock plugin defines the following variants:

microejMockRip

This variant is used to fetch the RIP of a Mock when a dependency is declared with the microejMock configuration in your project. It is configured with the following attributes:

  • the custom com.microej.veeport.artifact.usage attribute, set to default

  • the standard LibraryElement attribute, set to microej-rip

Runtime Environment

The Runtime Environment plugin defines the following variants:

runtimeEnvironment

This variant is used to fetch the Runtime Environment Jar when a dependency is declared with the microejRuntimeEnvironment configuration in your project. It is configured with the following attributes:

  • the custom com.microej.artifact.element attribute, set to runtime-environment-api

  • the standard LibraryElement attribute, set to microej-runtime-environment

VEE Port

The VEE Port plugin defines the following variants:

microejVeePort

This variant is used to fetch the VEE Port when it is declared with the microejVee configuration in your project. It is configured with the following attributes:

  • the custom com.microej.veeport.artifact.usage attribute, set to default

  • the standard LibraryElement attribute, set to microej-vee-port

Attributes of a Variant

An attribute allows Gradle to select the right variant depending on the consumer’s requirements. They are two types of attributes: standard attributes and custom attributes.

Standard Attributes

The standard attributes are defined by Gradle. Such an attribute is mandatory so the resolution of a dependency will fail if the producer did not define a variant with the attribute set to the same value. For example, if a VEE Port is defined using the implementation configuration, the build fails because the consumer wants a Jar but the VEE Port defines the LibraryElement attribute to microej-vee-port:

> Could not resolve all files for configuration ':runtimeClasspath'.
> Could not resolve com.mycompany:myVeePort:1.0.0.
  Required by:
      root project :
   > No matching variant of com.mycompany:myVeePort:1.0.0 was found. The consumer was configured to find a library for use during runtime, compatible with Java 8, packaged as a jar, preferably optimized for standard JVMs, and its dependencies declared externally but:
       - Variant 'microejVeePort' declares a library for use during runtime, compatible with Java 7, and its dependencies bundled (fat jar):
           - Incompatible because this component declares a component, with the library elements 'microej-vee-port' and the consumer needed a component, packaged as a jar
           - Other compatible attribute:
               - Doesn't say anything about its target Java environment (preferred optimized for standard JVMs)

If no variant matches the consumer’s requirements, Gradle can select a compatible variant. To make a variant compatible, the consumer must define a compatibility rule.

For example, this is the case for the Mocks built with SDK 6 1.1.0 or below that are published with the LibraryElement attribute set to microej-rip. To build a VEE Port from an Application, a compatibility rule is required to ensure that the fetch of the VEE Port and its dependencies other than Mocks does not fail.

Custom Attributes

The custom attributes are defined by the user. These attributes are optional, so when resolving a dependency Gradle selects the default variant of the dependency if the producer did not define a variant with the attribute set to the same value.

For example, this is the case for the Mocks built with SDK 6 1.2.0 or higher that are published with the custom com.microej.veeport.artifact.usage attribute. This attribute is optional, so when building a VEE Port from an Application, the VEE Port and all its dependencies other than Mocks are correctly fetched without having to define a compatiblity rule.

Warning

Starting from SDK 6 1.3.0, both a custom attribute and a standard attribute are used when resolving a MicroEJ dependency. The standard attribute is still defined to ensure that modules built with SDK 6 1.2.0 and below can be fetched by projects built with SDK 6 1.3.0 or higher. However, this attribute will be removed in the next major version, so it is highly recommended to update your project to use latest SDK 6 plugins.

For more information about variants and attributes, refer to the official documentation.
